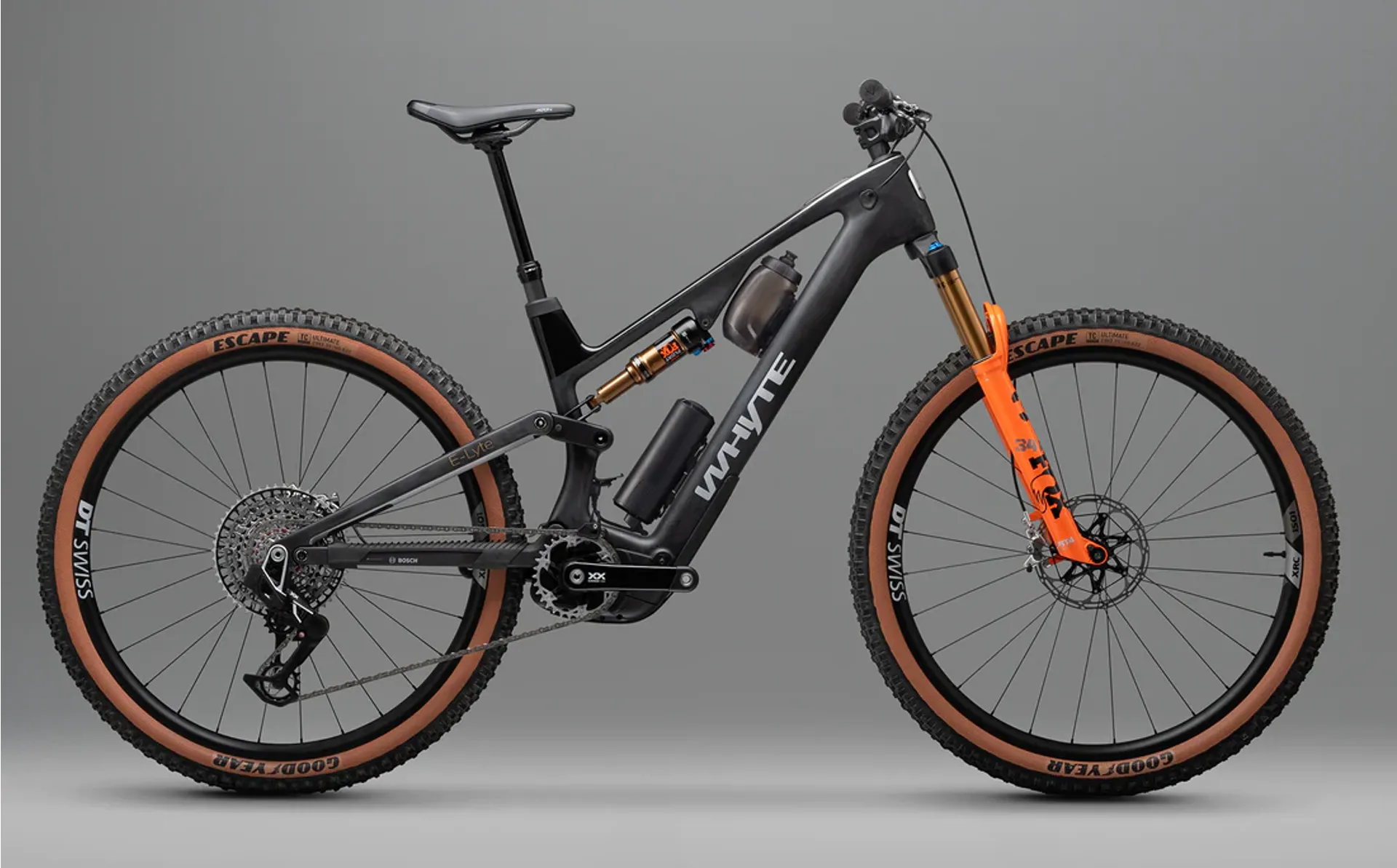

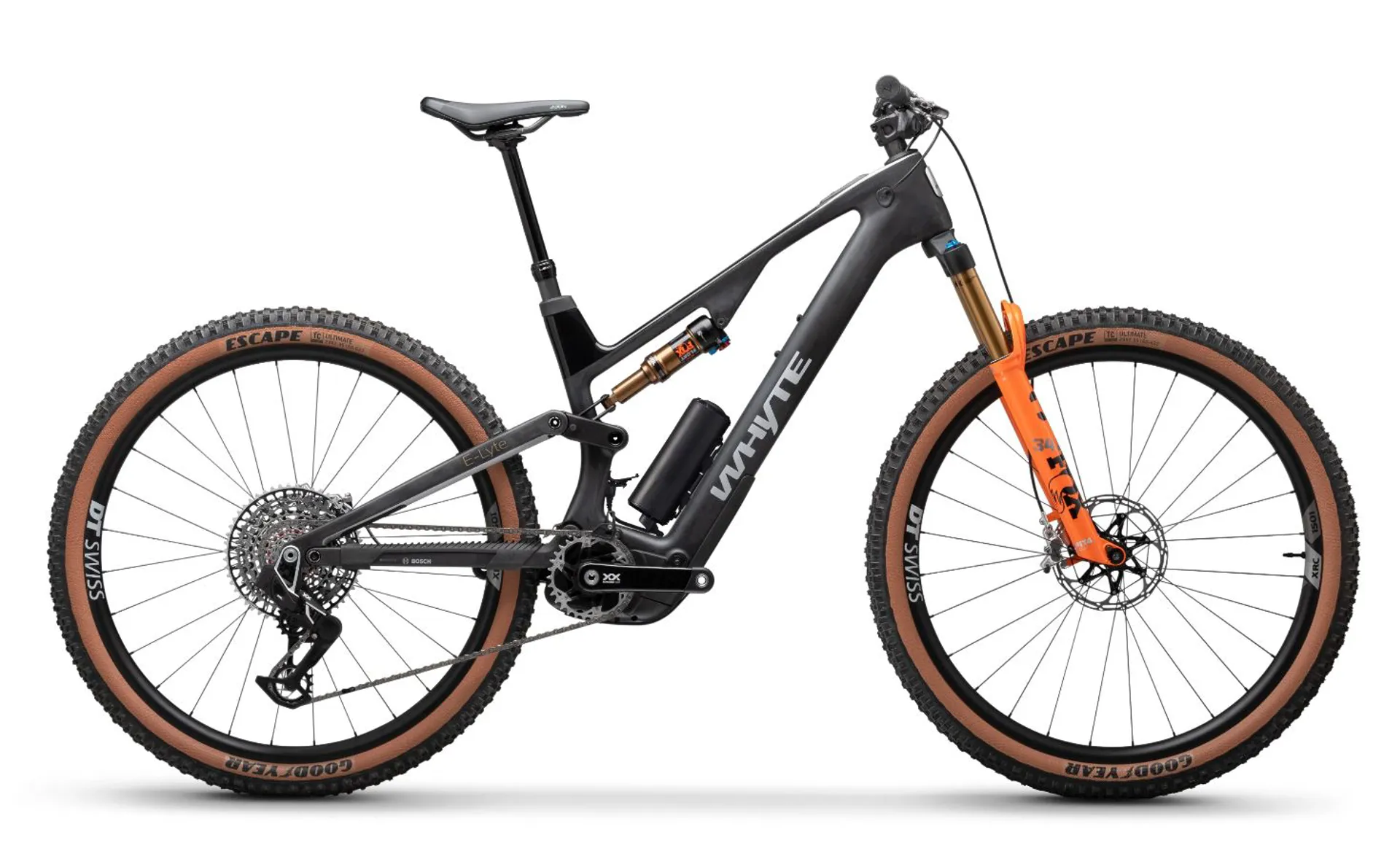

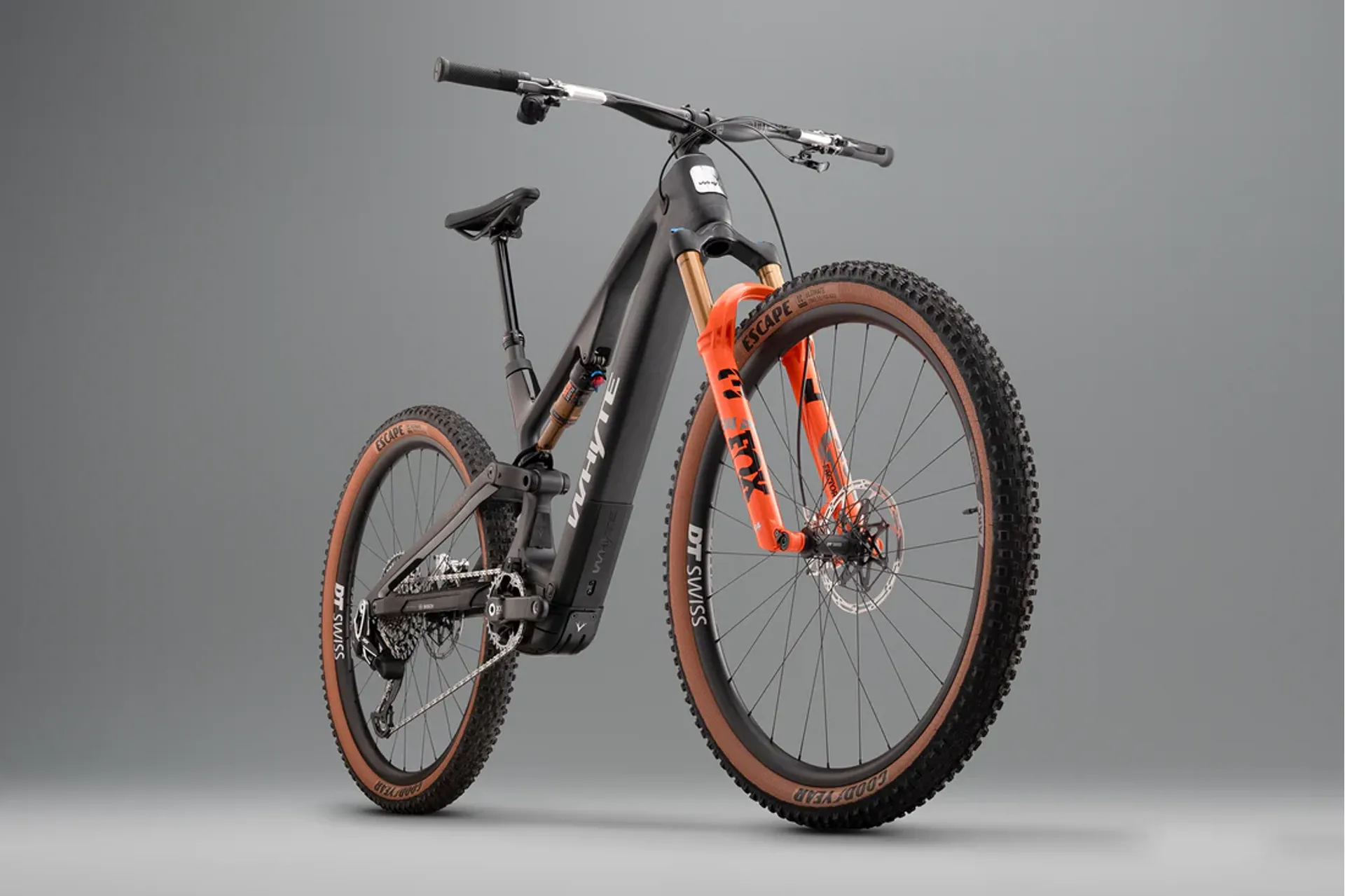

Whyte E-Lyte 140 Works Electric XC/Trail Mountain Bike Carbon/Gloss Black




Lightweight without compromise

The ELyte 140 Works is Whyte's lightest ever electric mountain bike (eMTB): at 16.4kg complete (size M) with 55Nm of torque, together with 600W of peak power, it perfectly blends lightweight cross country (XC)/trail bike performance with the capability of full-fat eMTBs to deliver an unparalleled and uncompromised ride, wherever the trail leads you: the singletrack, the all-day epic, the home trail hot laps, the descents and the climbs back out – and with a total combined battery capacity of 650Wh, it has the range to do it all.


  • 140mm front + 135mm rear of efficient custom-tuned suspension travel.
  • Uni-directional carbon fibre frame is light and reassuringly strong.
  • Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.
  • 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
  • 29er wheels front and rear for balanced handling.
  • 250Wh PowerMore range extender included.

Made for riding – not headlines

Whyte have not taken any shortcuts when it comes to assembling the finest trail-proven parts possible for the ELyte 140 Works. Nothing has been put on that compromises performance just to save a few grams to grab a headline: SRAM's top-shelf XX SL T-Type AXS 1x12 delivers flawless wireless electronic gearing; Fox Float Factory suspension units deliver the ultimate in suspension performance; SRAM Level Ultimate Stealth four-pot hydraulic disc brakes with 180mm rotors for rich, useable power; full-width 800mm wide RaceFace NEXT R bars for maximum control; a full 175mm drop KS Lev Ci post for real-world trail drop; and more.

ELyte 140 Works: lightweight, mid-torque, full power. Zero compromises.
Technical Information
  • Frame Material
    Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Link V2 and 12mm x 148mm Boost dropouts
  • Motor
    Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor
  • Battery
    650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender)
  • Fork
    Fox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper, tapered steerer, 110mm x 15mm Boost Kabolt axle

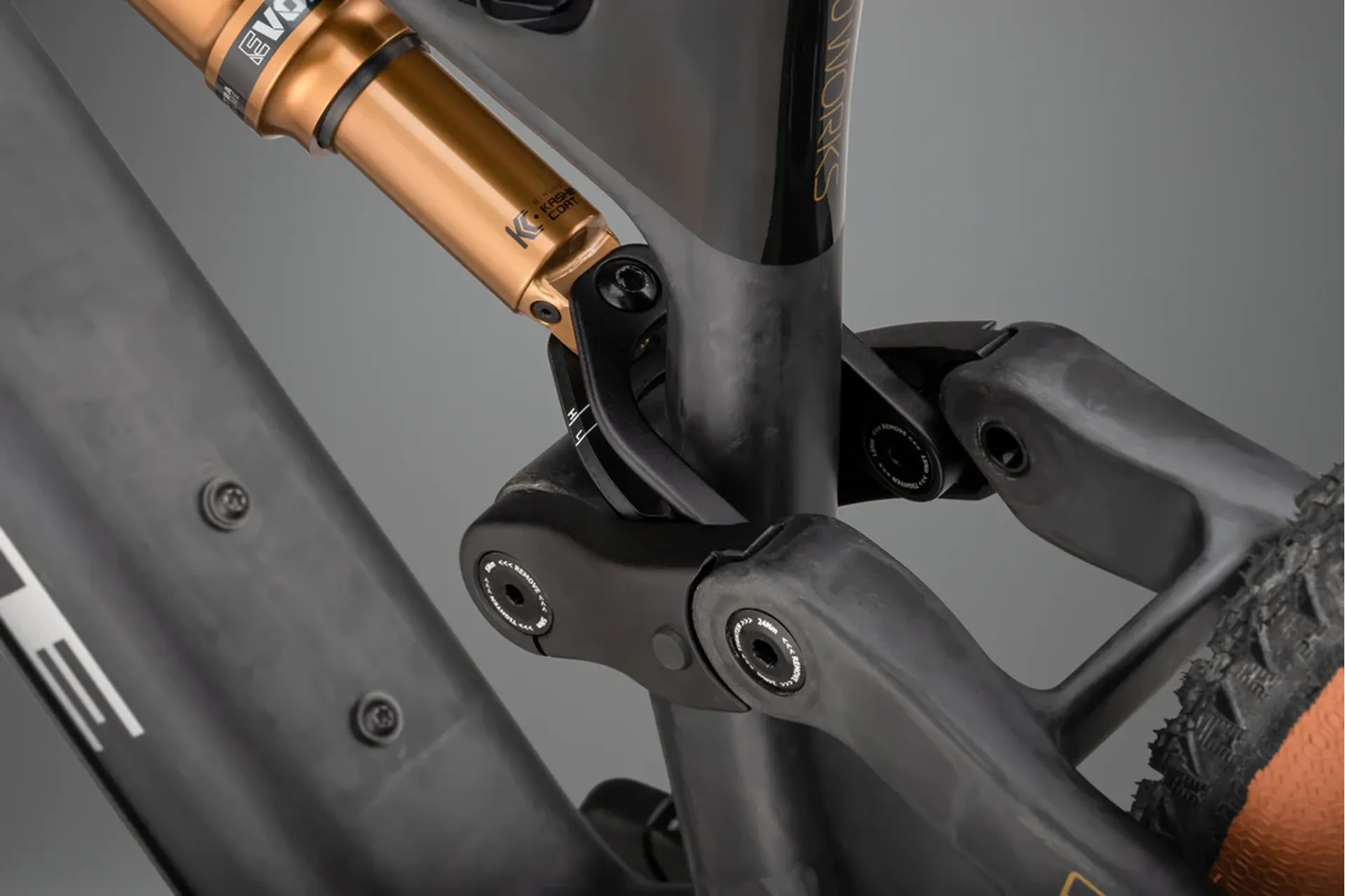

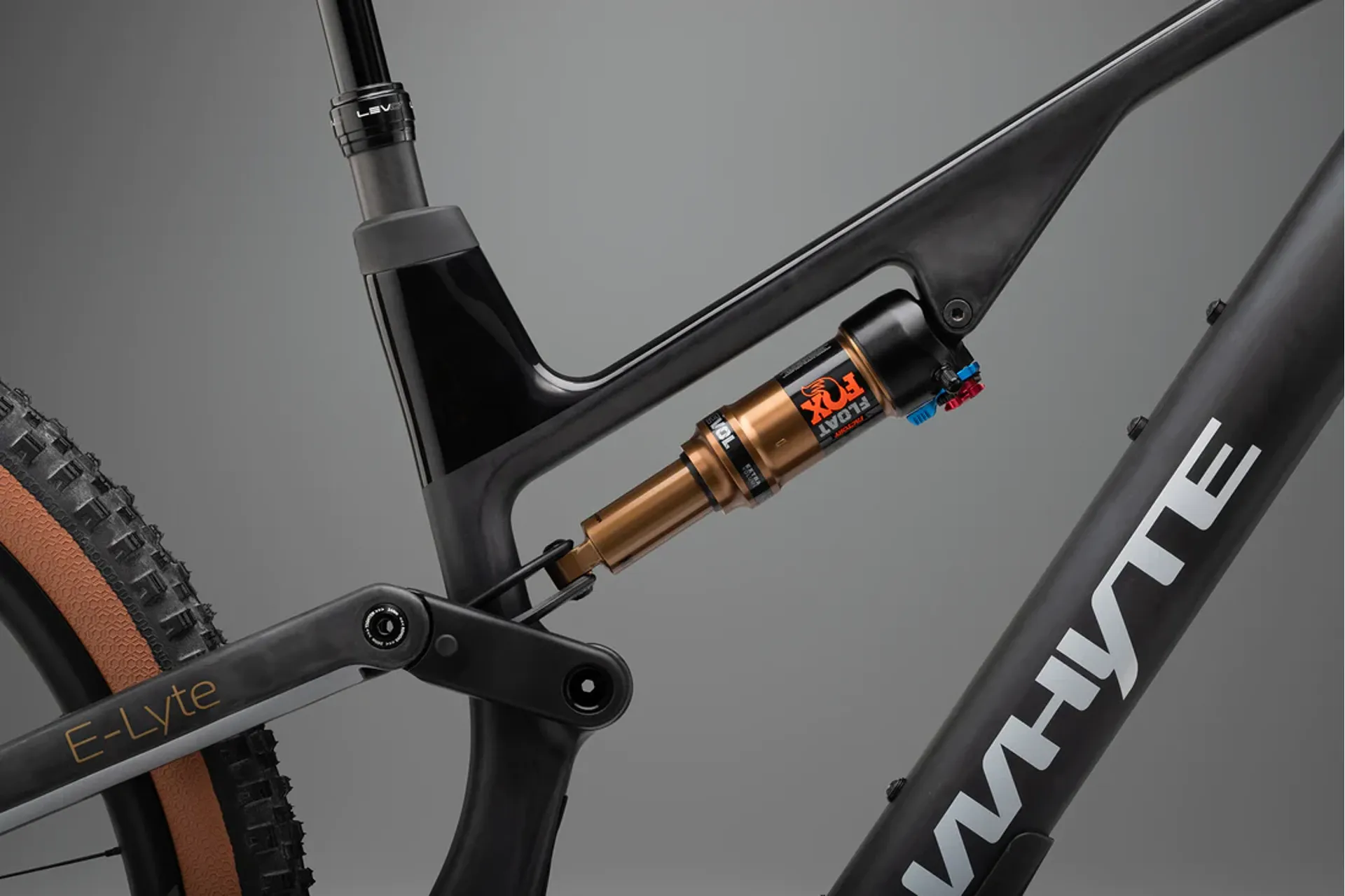

  • Rear Shock
    Fox Float Factory, Evol LV, adjustable rebound and two position compression adjustment
  • Headset
    FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing
  • Rear Hub
    DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver
  • Front Hub
    DT Swiss 240, straight pull, six bolt, 15mm x 110mm Boost spacing
  • Spokes
    DT Swiss Competition spokes straight pull (SP)
  • Rims
    DT Swiss XRC 1501 Spline
  • Tyres
    Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear
  • Shifters
    SRAM AXS Pod, right, MMX, 12 speed

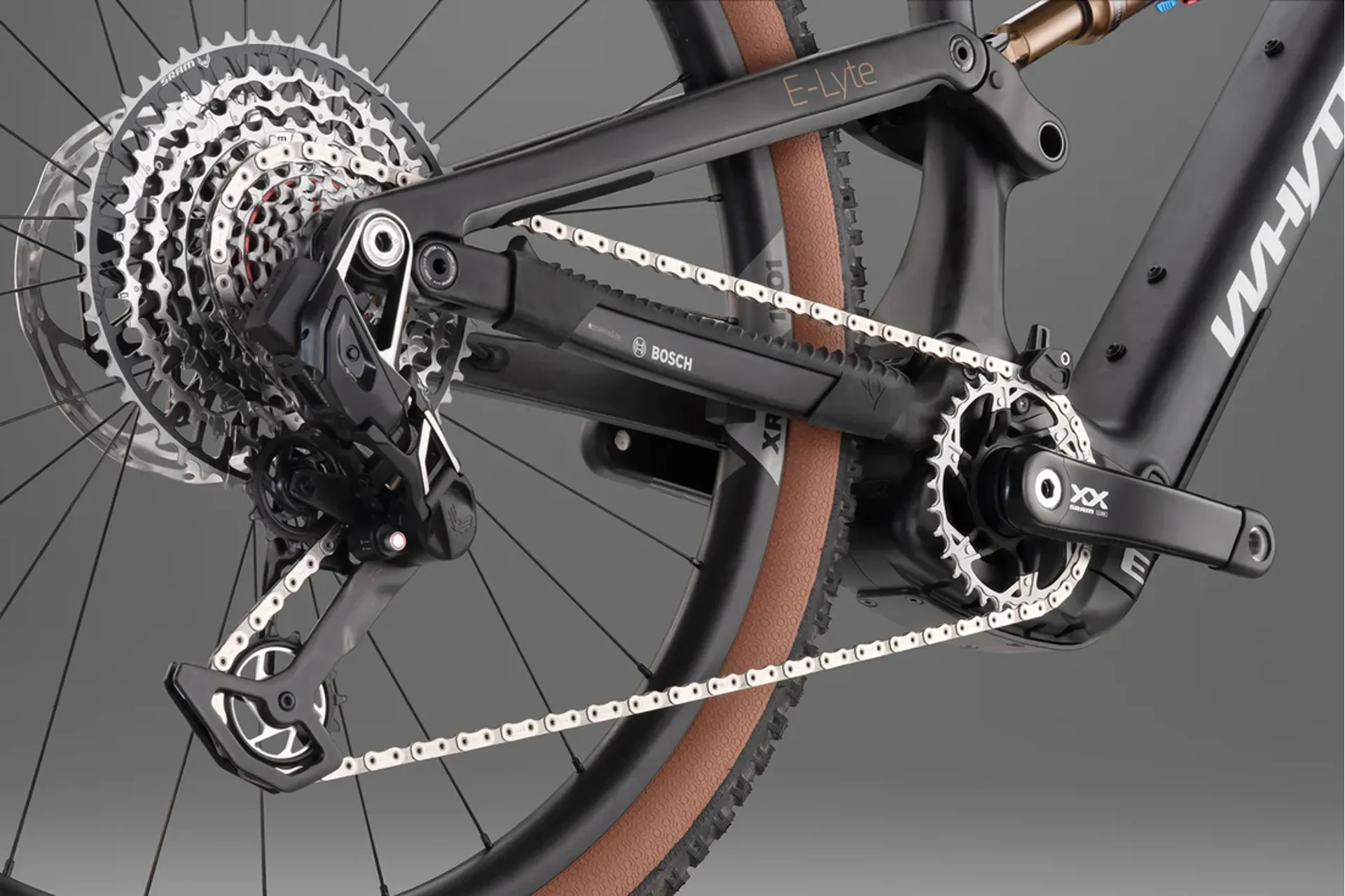

  • Rear Mech
    SRAM XX SL T-Type AXS, 12 speed
  • Cassette
    SRAM XS 1297, T-Type, 10-52T, 12 speed
  • Chain
    SRAM XX T-Type, 12 speed
  • Crankset
    SRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T chainring, T-Type Light eMTB
  • Seatpost
    KS Lev Ci, 30.9mm, 175mm drop, with Southpaw remote lever
  • Saddle
    Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon 7x7mm rail

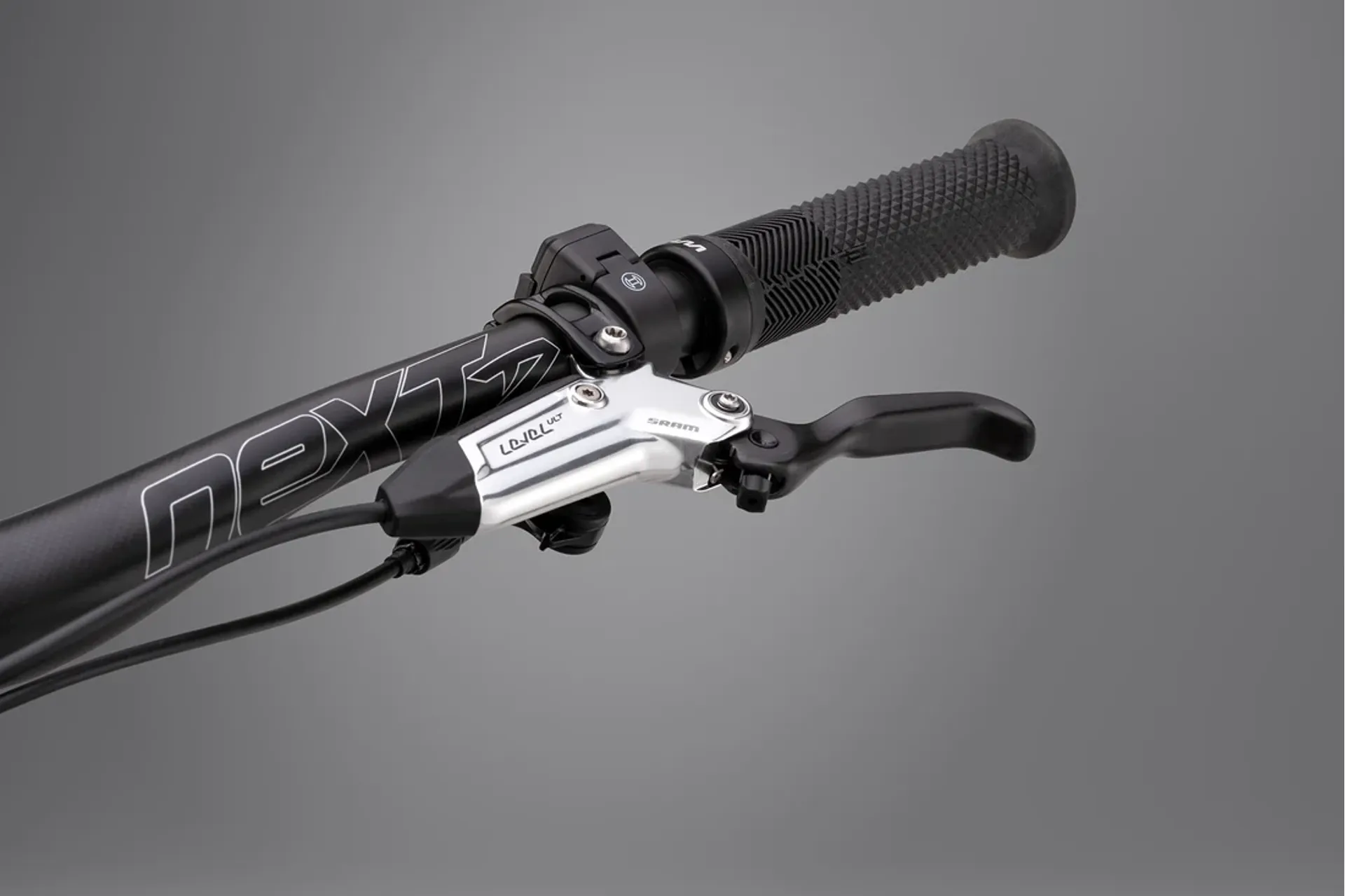

  • Handlebar
    Race Face NEXT R Carbon, 20mm rise, 35mm bar bore, 800mm wide
  • Stem
    Whyte Trail full CNC, 40mm extension, 35mm bar bore
  • Grips
    Whyte Enduro lock-on
  • Brakes Front
    SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor

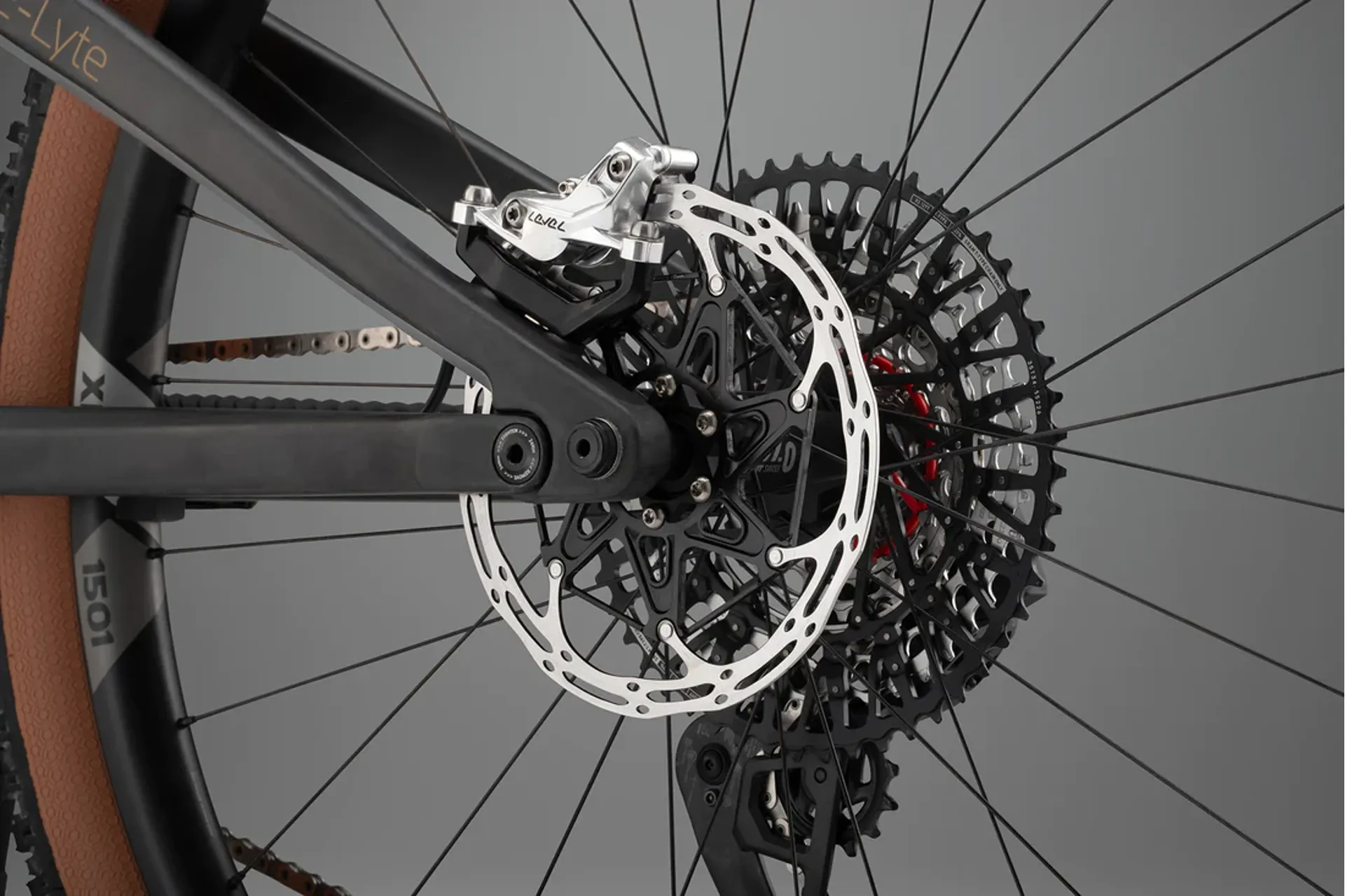

  • Brakes Rear
    SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor
  • Brake Levers
    SRAM Level Ultimate Stealth
  • Pedals
    Fibre reinforced composite platform
  • Weight
    16.4kg (size M)
Sizing Information

Whyte Mountain Bike Size Guide

Inches5'2" - 5'6"5'6" - 5'10"5'10" - 6'2"6'2" - 6'6"

Whyte Road Bike Size Guide

Inches5'0" - 5'3"5'3" - 5'6"5'6" - 5'9"5'9" - 6'0"6'0" - 6'3"

Size Guides are a great way to help you find the right bike, but we always recommend visiting our store to view and sit on the bike in person where possible or speaking to our advice team.

This Size Guide is based on an average build, if you have shorter arms or longer legs for example you will need to consider this when purchasing a bike. If you are between sizes, we always recommend sizing down as a smaller bike can be made bigger with adjustments. Stem length, Saddle height, Handlebar width and even Crank length can be changed to achieve the ideal riding position. See here for our general bike sizing guide.

Professional Opinion

Beautifully light, reassuringly strong

The beating heart of the ELyte 140 Works is an all-new, lightweight yet strong carbon fibre chassis that carefully packages Bosch's light and powerful Performance Line SX mid-torque (55Nm), full power (600W) motor – and the 400Wh internal battery –seamlessly so you can fly under the radar as stealthily as you'll fly down the trails. We've also carefully positioned the Bosch PowerMore range extender as low in the frame as possible to optimise the bike's centre of gravity and deliver an exceptional handling bike, however you want to ride – with the range extender for longer rides out in the hills, or without for lapping your local trails.

Your bike, your way

Whyte engineered the ELyte 140 Works to give you the option to set it up and ride it as you want. Want more battery? The ELyte 140 Works comes with Bosch’s 250Wh PowerMore range extender – that mounts in the lower bottle boss position. Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 450ml bottle (on sizes M-XL) – even with the PowerMore in place. Or you can use the Fidlock mounts for tool or tube mounting (all sizes). Want to slacken the geometry out? The ‘ Link V2’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins. Want to pedal further? Keep it in its higher, more all-day ride-friendly position.

Engineered for the best – and worst – conditions

Designed, tested and proven every ELyte in our native UK, riding all year round through the best and the worst weathers, and have added a whole host of touches that will keep you riding sweeter and for longer. Things such as: a fully weather-sealed seat-clamp gaiter, and sealed cable and hose ports to keep the water out; positioning the charge port at the base and to the front of the seat tube out of the firing line of the rear wheel spray; clearance for up to 2.5in tyres between the seat and chainstays to prevent mud and gunk slowing you down; Phosphate-coated and marine grease packed pivot bearings to maximise pivot bearing service life; as well as frame protection on the lower downtube and chainstay to keep the frame in great shape, and much more.
